Installing and Administering IPSec - Term Paper Example

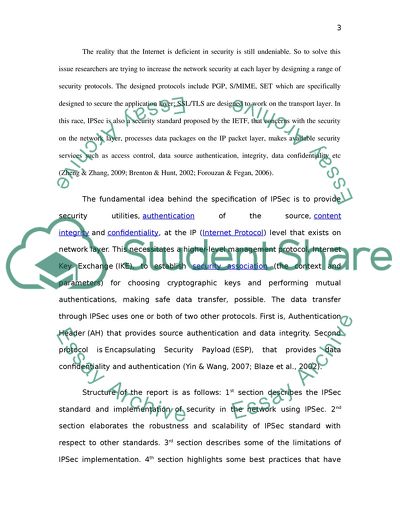

Table of Contents Introduction Today, the communication between networks, that are being established, have a strong need of good security mechanisms in order to ensure the security, integrity, confidentiality and authenticity between two hosts or two networks. The most common services of IPSec implementation are VPN (virtual private networking) services that can be used over existing networks e.g. internet, can provide the secure transfer of sensitive data over public networks (Frankel et al., 2005; Kurose & Ross, 2009). The reality that the Internet is deficient in security is still undeniable. So to solve this issue researchers are trying to increase the network security at each layer by designing a range of security protocols. The designed protocols include PGP, S/MIME, SET which are specifically designed to secure the application layer; SSL/TLS are designed to work on the transport layer. In this race, IPSec is also a security standard proposed by the IETF, that concerns with the security on the network layer, processes data packages on the IP packet layer, makes available security services such as access control, data source authentication, integrity, data confidentiality etc (Zheng & Zhang, 2009; Brenton & Hunt, 2002; Forouzan & Fegan, 2006). The fundamental idea behind the specification of IPSec is to provide security utilities, authentication of the source, content integrity and confidentiality, at the IP (Internet Protocol) level that exists on network layer. This necessitates a higher-level management protocol, Internet Key Exchange (IKE), to establish security association (the context and parameters) for choosing cryptographic keys and performing mutual authentications, making safe data transfer, possible. The data transfer through IPSec uses one or both of two other protocols. First is, Authentication Header (AH) that provides source authentication and data integrity. Second protocol is Encapsulating Security Payload (ESP), that provides data confidentiality and authentication (Yin & Wang, 2007; Blaze et al., 2002). Structure of the report is as follows: 1st section describes the IPSec standard and implementation of security in the network using IPSec. 2nd section elaborates the robustness and scalability of IPSec standard with respect to other standards. 3rd section describes some of the limitations of IPSec implementation. 4th section highlights some best practices that have been observed as accelerating network communication and providing a better security against attacks. And the last section summarizes the conclusions. 1. IPSec and Implementation of Security IPSec that basically stands for Internet Protocol Security defines a fundamental, low level mechanism for secure communication between two hosts or networks for use with the Transmission Control Protocol/Internet Protocol (TCP/IP), which is the protocol being used on the Internet and on other private networks such as LANs or intranets. It was mainly designed for the new IPv6 standard but can optionally be used with IPv4 (Spenneberg, 2003). According to (Frankel et al., 2005), IPSec standard is based on a set of protocols to implement the security in network layer. These protocols include: two security protocols, Authentication Header (AH) and Encapsulating Security Payload (ESP), Internet Key Exchange (IKE) protocol, IP Payload Compression Protocol (IPComp), which is used optionally. IPSec protocols work together in various combinations to provide protection for communications. A brief description of each protocol is given below: (Frankel et al., 2005) Authentication Header (AH) AH is basically used by IPSec to provide integrity protection for packet headers and data, but it is not designed to encrypt them as compared to ESP (discussed below) which can provide encryption and integrity protection for packets but as compared to AH, ESP cannot make the outermost IP header, secure, as AH can. Though, this protection is not needed in most cases. Encapsulating Security Payload (ESP) The frequency of the usage of ESP is much more than AH because it facilitates more encryption capabilities, as well as other operational advantages over AH. For a VPN, which requires confidential communications, ESP is the natural choice. ESP also allows encryption-only and authentication-only configurations, but using such schemes is usually not recommended because it is insecure. Unlike Authentication Header (AH), ESP does not provide security for IP packet header. Though, in Tunnel Mode, where the entire original IP packet is encapsulated with a new packet header added, ESP supports the protection of the whole inner IP packet which also includes the inner header, at the same time as the outer header remains insecure Internet Key Exchange (IKE) IPSec uses IKE to agree IPSec connection settings. The main purpose is to authenticate the endpoints to each other and also specifying the security parameters of IPSec-protected connections. It is used for setting up the encryption keys and managing, updating, and deleting communication channels that are protected by IPSec. IP Payload Compression Protocol (IPComp) IPSec uses IP Payload Compression Protocol (IPComp) optionally, to compress packet payloads before encrypting them. This protocol will increase the overall communication performance between a pair of communicating hosts by compressing the packet payloads. IPSec works in two modes, with each mode providing its own functionality. These modes are tunnels mode and transport mode (Frankel et al., 2005; Spenneberg, 2003). Both modes are described below: Tunnel mode When working in tunnel mode, security gateways are needed to provide support for tunnel mode connections. Client machines can use the tunnels provided by the gateways for routing purpose. The client machines do not require any IPSec processing, they just have to perform their usual tasks such as routing things to gateways (Frankel et al., 2005; Spenneberg, 2003). Transport mode To work in transport mode using IPSec implementation Host machines (as opposed to security gateways) must also support transport mode. In this mode, the host performs its own IPSec processing and routes some packets by means of IPSec (Frankel et al., 2005; Spenneberg, 2003). Implementation of security through IPSec According to (Zheng & Zhang, 2009), IPSec implements the security in a network by maintaining the security associations. Security Association (SA) works as the basis for IPSec, which determines the security parameters that will be used in communication to make it secure, such as IPSec security protocol, hash function, encryption algorithm and encryption key. Security Association is typically specified by a unique triple (security parameter index, destination IP address, security protocol). Security Associations are materialized in pairs, one in each of the communication peers. These associations are determined after the negotiation between the communicating hosts in the networks. To store these security associations, special Security Association Database (SAD) is designed. Additionally, IPSec also maintains a Security Policy Database (SPD). Every network interface that is secured by IPSec, possesses a pair of Security Policy Database and Security Association Database, which cooperates with processing inbound and outbound IP packets. One Security Association Database entry is equivalent to a Security Association, whereas, one entry in the Security Policy Database depicts a security policy. When data is sent to the destination host, the corresponding policy in Security Policy Database is retrieved, if the recorded action is to “apply” the data transfer (as specified in the security policy), then corresponding Security Associations are retrieved according to the Security Association pointer. In case, if the Security Association does not exist in the Security Association Data base, then a new Security Association is created and stored into the database. Once Security Association has been retrieved from the database, the data packets are processed with the security protocol and authentication encryption algorithm specified in the Security Association. Then the processed data packets are sent to the IP of destination host. The receiver side discovers the Security Association according to the Security Parameter index parameter in the datagram, and verifies if retransmission of data is required. Otherwise, the data is decrypted and authenticated with the protocol specified in the Security Association (Zheng & Zhang, 2009; Yin & Wang, 2007; Frankel et al., 2005). 2. IPSec’s Robustness and Scalability According to (Dahl, 2004; Yin & Wang, 2007), IPSec is really a robust and scalable standard for providing network security. it is basically designed for IPv6 but also scalable with IPv4. IPSec offers security directly on the IP network layer and secure everything that is put on top of the IP network layer. IPSec protocol has also been established as an Internet standard for quite some time and has been confirmed to be a safe and trusted mechanism to provide the security in communications in a network or between the networks. IPSec also allows us for the use of nested tunnels i.e. if a user must move across two or more secure gateways the tunnels can be double encrypted. (GTE Internetworking, 1999; Zheng & Zhang, 2009) have also highlighted some prominent features of IPSec, which make this protocol more robust as compared to other security standards. IPSec allows for transparency as One of IPSec’s noticeable strong points lies in the integration of encryption and authentication methods with robust and full-featured key exchange Algorithms and protocol negotiation features to provide security against vulnerabilities on network layer. IPSec is complete package including both, a tunneling technology and a security technology. It enhances robustness as using tunneling without encryption facilitates no security against many forms of attack. Tunneling for an organization may not be just concerned with securing external routers from dealing with internal addresses. It may also be adopted for hiding those addresses from attackers beyond the firewall. Now days, because of many powerful attacker tools, security mechanisms that perform no authentication of the source and destination of every IP packet may provide worst results than no authentication at all. IPSec real strength lies in the fact the as compared to other standards, it combines tunneling, authentication, and encryption in a package that provide the organizations with a secure route between private networks, or into a network from a trusted host, while traveling right through a public network such as internet. IPSec is a scalable security standard and also promises for interoperability i.e. its spans all the vendors and platform same as IP do. 3. Limitations of IPSec Despite the IPSec’s strengths over other security standards, it also has some limitations that may degrade the performance of network, implementing the IPSec standard. (HP Networking, 2001) discuss some limitations that specifically, IPSec/9000-secured systems in a network usually have. These are: When an IPSec/9000 system stops working and the system had already created ISAKMP (Internet Security Association and Key Management Protocol) Security Accusations with peer IPSec systems, the peers will not be capable of using any existing ISAKMP and IPSec Security Accusations to start communication with the peer system that has just restarted. When the IPSec Security Associations are configured to be shared betweens peers, the peer system can not initiate any communication with the restarted system which is using same IPSec Security Associations. But existing Security Association have to be expired for this purpose. In addition, IPSec security standard have some limitations in general. These are: IPSec is not able to provide the same end-to-end security for the systems that are working at higher levels. IPSEC supports the encryption of an IP connection between two machines, but it is not applicable for higher level security such as encrypting messages between users or between applications. IPSec does not provide support for the stoppage of Denial of Service attacks. IPSec does not provide protection against analyzing the unencrypted headers of encrypted packets such as source and destination’s gateway addresses and packet size etc. This information can be acquired by attackers with some intelligent tools. 4. Best Practices of IPSec Configuration and Management IPSec has been designed as a standard to provide the security in communications within and between the networks. Researchers have put great efforts to use this standard in the most efficient manner to make the communications more secure and safe. (Zhang et al., 2009) have proposed a strategy to configure the IPSec standard for achieving best communication performance. Their strategy is based on IPSec Thumbnail Protocol (ITP) to speed up IPSec communication. According to them, communication speed can be accelerated by caching data segments of the original IP packet and constructing ITP Thumbnail packet to transfer. They have also shown the validity of their proposed strategy by implementing an ITP prototype system on Linux platform and have evaluated it in the test environment. The experimental results have shown a great improvement in IPSec’s communication performance. (Zheng & Zhang, 2009) have proposed to use a dynamic pre-shared key generation mechanism that may keep the system away from the harm due to the crack of the pre-shared key in IKE protocol . The new practice involves the method that generates the pre-shared key dynamically before deciding the security associations. So the new pre-shared key will be generated every time when the security association is created. Generating the pre-shared key dynamically before the security association creation, allows for two way authentication. If the authentication through the shared key is not successful, then security associations can not be established. So configuring IPSec Standard in this way can effectively defend against the DoS attacks. Conclusion This report has presented a brief introduction of a security standard, called, IPSec and its capabilities in ensuring the secure communication in the network. IPSec basically uses a combination of protocols such as Authentication Header (AH), Encapsulating Security Payload (ESP), Internet key exchange (IKE) and IP Payload Compression Protocol (IPComp), which is used optionally. Each protocol plays its part in improving the security, integrity and confidentiality of communication by using different algorithms for encryption and authentication. IPSec is usually implemented by maintaining security associations which are stored in security association database and are retrieved according to the actions specified in the security policies that are stored in security policy database. Though IPSec provides a better, scalable and robust mechanism for ensuring the security in communications, as compared to other standards, but it also have some limitations as it can not resist DoS attacks. However, there are some strategies that have been proposed and are being followed to improve the effectiveness of IPSec standard. These practices ensure better performance of IPSec in speeding up the communication as well as protecting it against DoS attacks while using IPSec standard. Bibliography Blaze, M., Ioannidis, J. & Keromytis, A.D., 2002. Trust management for IPsec. ACM Transactions on Information and System Security (TISSEC), 5(2), pp.1-13. Brenton, C. & Hunt, C., 2002. Mastering Network Security. Sybex. Dahl, O.M., 2004. Limitations and Differences of using IPSec, TLS/SSL or SSH as VPN- Solution. [Online] Available at: http://olemartin.com/projects/VPNsolutions.pdf [Accessed 12 November 2010]. Forouzan, B. & Fegan, S.C., 2006. Data Communications and Networking, 4th edition. New York: McGraw-Hill. Frankel, S. et al., 2005. Guide to IPSec VPNs. [Online] Available at: http://csrc.nist.gov/publications/nistpubs/800-77/sp800-77.pdf [Accessed 12 November 2010]. GTE Internetworking, 1999. IPSec VPNs with Digital Certificates: The Most Secure and Scalable Approach to Implementing VPNs. [Online] Available at: http://www.firstnetsecurity.com/library/gte/GTE%202.pdf [Accessed 12 November 2010]. HP Networking, 2001. Installing and Administering IPSec/9000. [Online] Available at: http://docs.hp.com/en/J4255-90011/J4255-90011.pdf [Accessed 12 November 2010]. Kurose, J.F. & Ross, K.W., 2009. Computer Networking: A Top-Down Approach. New York: Addison Wesley. Spenneberg, R., 2003. IPsec HOWTO. [Online] Available at: http://www.ipsec-howto.org/ipsec-howto.pdf [Accessed 12 November 2010]. Yin, H. & Wang, H., 2007. Building an application-aware IPsec policy system. IEEE/ACM Transactions on Networking (TON), 15(6), pp.1-15. Zhang, Y. et al., 2009. A New Approach for Accelerating IPSec Communication. 2009 International Conference on Multimedia Information Networking and Security,mines, 2, pp.482-85. Zheng, L. & Zhang, Y., 2009. An Enhanced IPSec Security Strategy. 2009 International Forum on Information Technology and Applications, ifita, 2(1), pp.499-502. Read More
