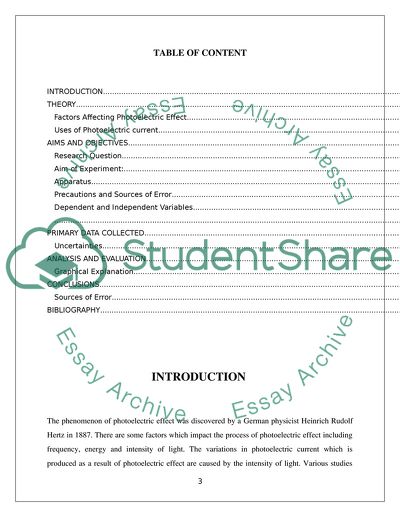

Physics Extended Essay To Study the Variations of Photoelectric Current with Intensity of Light ABSTRACT This study discusses the variations of photoelectric current with intensity of light. The photoelectric effect is dependent upon various factors including frequency of light, intensity of light, nature of material, energy of light and potential difference. However, even if the photoelectric effect is caused, the photoelectric current which is produced as a result of it may vary if intensity of light is changed, provided that frequency of illumination is greater than threshold frequency. To determine the impact of changing light intensity on photoelectric effect while keeping the other factors constant, an experiment was performed. The impact was seen by changing the distance of light source from photocell and the recording the readings on Microammeter. The correlation and graphical analysis was done to draw the results. The correlation analysis showed a significant positive relationship between photoelectric current and intensity of light. The graphical analysis also highlighted a positive linear relationship. Therefore, it was concluded that intensity of light directly affects the variations in photoelectric current. TABLE OF CONTENT INTRODUCTION 2 THEORY 5 Factors Affecting Photoelectric Effect 5 Uses of Photoelectric current 6 AIMS AND OBJECTIVES 9 Research Question 9 Aim of Experiment: 11 Apparatus 11 Precautions and Sources of Error 14 Dependent and Independent Variables 14 14 PRIMARY DATA COLLECTED 16 Uncertainties 18 ANALYSIS AND EVALUATION 20 Graphical Explanation 20 CONCLUSIONS 24 Sources of Error 24 BIBLIOGRAPHY 28 INTRODUCTION The phenomenon of photoelectric effect was discovered by a German physicist Heinrich Rudolf Hertz in 1887. There are some factors which impact the process of photoelectric effect including frequency, energy and intensity of light. The variations in photoelectric current which is produced as a result of photoelectric effect are caused by the intensity of light. Various studies have been conducted to explain the relation between variations of photoelectric current and intensity of light. The photoelectric current variations can be explained through Maxwell’s equations. According to Maxwell’s equations, the magnitude of electric field increases as the intensity of light increases because the magnitude of electric field vector of a light wave is directly proportional to square root of the intensity of light. The force of electron is positively related to the electric field vector which means that with the increase in the intensity of incident light, the kinetic energy of photoelectron should be increased (Javier 2008).1 The Classical wave theory predicts that the phenomenon of electric effect is caused when the light of certain intensity and any frequency incidents on the surface of matter and it is intense enough to eject the photoelectrons. Although classical theory supports the relationship between variations in photoelectric current and intensity of light however, it is challengeable because in actual practice after a specific frequency photoelectric effect is not caused (or in other words photoelectric current is not produced) regardless of the intensity of light (Subhrajyoti).2 Einstein made use of Plank’s theory to explain the photoelectric effect. According to his explanation, the light travels in the form of bundles of packets with an energy of E = hf* and when it falls on the surface of matter, it transfers energy into electrons and electrons come out of the surface of the matter and photoelectric current is produced. Einstein theory shows that intensity of light is positively related to the variations in photoelectric effect provided that light of specific frequency is being used. In short, equations of Maxwell supports that intensity of light positively affects the variations in photoelectric current. The Classical theory also supports that intensity of light of any frequency positively affect the photoelectric current. However, quantum theory explains that only with a specific frequency of light, the intensity of light is directly proportional to photoelectric current. Therefore, in order to consolidate the results of these three different theories and to study the variations of photoelectric effect with the change in the intensity of light, the need to conduct this research study was felt. This study starts with the theory section which briefly covers the process of photoelectric effect, factors affecting this phenomenon and applications of photoelectric current in our daily life. In the next section, I have explained the methodology that have been used to study the relationship between variations of photoelectric current and intensity of light. After that the experiment has been explained through which data has been collected. In the next section, the primary data collected has been summarized. In the last section, an analysis and evaluation has been done to interpret the data and findings. The study wraps up with a brief conclusion of the study and results. THEORY The photoelectric effect is defined as; Emission of electrons from the surface of matter including metals, gases, liquids and non-metallic solids when light of a certain frequency is incident on it is known as photoelectric effect. In other words, it is the process of the removal of electrons from the surface of matter when rays of special frequency fall on the surface of matter. As a result of the flow of these photoelectrons, the photoelectric current is produced. Factors Affecting Photoelectric Effect Photoelectric current is produced as a result of photoelectric effect; therefore, understanding the factors which influence the photoelectric effect is very important. The previous studies on photoelectric effect have presented the following factors which may have a direct impact on photoelectric effect. 1. Intensity of Light: If a high intense light of frequency equal or greater than threshold frequency falls on the surface of matter, the photoelectric effect is caused. Since studying the impact of this factor is the focus of this research study, therefore, it would be discussed in detail however; one thing which is very clear is that the emission of electrons does not depend upon the intensity of light unless the frequency of light is greater than the threshold frequency. 2. Frequency: If a beam of light with frequency equal to or greater than threshold frequency strike the surface of matter, photoelectric effect is produced. If frequency is less than the threshold frequency then photoelectric effect cannot be seen. The threshold frequency varies from matter to matter. 3. Number of Photoelectrons: The increase in intensity of light increases the number of photoelectrons, provided the frequency is greater than threshold frequency. In short, the number of photoelectrons increases the photoelectric current. 4. Kinetic Energy of Photoelectrons: The kinetic energy of photoelectrons increases when light of high energy falls on the surface of matter. When energy of light is equal to threshold energy then electrons are emitted from the surface whereas when energy is greater than threshold energy then photoelectric current is produced. The threshold frequency is not same for all kinds of matter and it varies from matter to matter. Uses of Photoelectric current Photoelectric effect is a very useful phenomenon and its importance can be understood from following uses of the photoelectric current. Basically the photoelectric current produced as the result of photoelectric effect is used in different types of photodiodes and phototransistors. The photoelectric current is very useful in many solar light sensitive diodes and solar power such as solar cells. In semiconductors, photoelectric current is produced by exciting the electrons or by kicking out electrons from the valence shells by throwing light even of low energy. This current produced in semiconductors is used for different purposes and has voltages related to the band gap energy. One of the major uses of the photoelectric current is in photomultipliers. In Photomultipliers, the current is used for the detection of low levels of light. In the early days of television, the photoelectric current was also used in video camera tubes. The photoelectric current is produced in Silicon image sensors by knocking out the electrons from outer most shell of the solid but not out of the matter. This photoelectric current is then used in different charged couple devices. In addition, Photoelectric current is also used in gold leaf electroscope which is designed for the detection of electricity. Photoelectron spectroscopy is also included in one of the main applications of the photoelectric current. The energy of incident photons can be found with the help of photoelectric current because energy of incident photons is equal to the sum of binding energy of material’s work function and the energy of photoelectrons. The binding energy is determined by bombarding the matter with ultraviolet source or monochromatic X-ray source. On the other hand, energy of emitted photoelectrons is determined by measuring the kinetic energy of photoelectric current. Photoelectric current of positive or negative charges is also produced in space craft due to the photoelectric effect. The parts of space craft exposed to the shadow develop a negative current of several kilovolts. On the other hand, the parts of space craft exposed to light produce a positive current. Furthermore, the sunlight hits the lunar dust, they get charged due to photoelectric effect. The surface of the moon is lifted off due the repulsion of this charged dust. So, the photoelectric effect is also used to study the surface of the moon. Apart from all of the above mentioned uses, photoelectric current produced during photoelectric effect also has a great use in night vision devices. The photoelectrons are ejected out when light is fallen on gallium arsenide plate of the night vision devices which are then amplified into cascade of electrons. These amplified electrons are used to lighten up a phosphor screen. In short, there are various applications of photoelectric effect and current in our daily life. AIMS AND OBJECTIVES The primary purpose of this project is to evaluate the impact of distance of source of light on the magnitude of current. Through this project, I expect to get an inverse relationship between the two variables. Since, the energy consumption issues are increasing nowadays, and projecting the right consumption has become difficult for policymakers, therefore, there is a need to carry out such research projects that may provide help to energy producing companies. This research aims to assist policymakers and energy producing companies to understand the impact of the factors affecting power generation such as current. Therefore, it is expected that this research will be really useful in understanding an important phenomenon of photoelectric effect, thereby, contributing to environment. Research Question The research question of this study is as follows: “What is the impact of changing intensity of light on current produced through photoelectric cell?” METHODOLOGY This study is an experimental research study. It focuses on the variation of photoelectric current by changing the intensity of light. The quantitative experimental approach has been used to study the relationship between the two factors. Apart from that, findings of similar previous research studies and theories have been consulted to support the findings of this research study. The experiment has been conducted in the laboratory environment to study the impact of independent variable on the dependent variable. It is one-point in time study and it is not a continuous study. Total nine readings have been taken by conducting the experiment. Since, it only studies the relationship between the variations of photoelectric current and intensity of light therefore, all other variables have been kept constant while carrying out the experiment. After collecting the data by performing the experiment, it has been analyzed by two steps. In the first step, the correlation analysis has been done to explain the significant relationship between the two variables while in the second step; the graphical description has been used to interpret the findings. Two variables have been selected to conduct the research. The dependent variable is the current whereas; the independent variable is the distance. Since, it has been investigated that by changing the distance, the magnitude of current changes therefore, current is the dependent variable. EXPERIMENT To Study the Variation of Photoelectric Effect with Intensity of Light Aim of Experiment: The aim of performing this experiment was to check the impact of change in intensity of light on photoelectric current. Apart from that, it has also proved that the photoelectric phenomenon, which has been commonly used in various applications of daily life is a simple phenomenon. Apparatus The apparatus, which I have used to conduct this experiment, include Photocell, Rheostat, Electric Lamps, Sensitive Galvanometer/Microammeter, Battery, Scale, Key and Connecting wires. 1. I drew a circuit diagram (Figure 1) to get an idea about the scheme of connections. I arranged the circuit in the exact manner as provided in Figure 1. Before conducting the experiment, I ensured whether all apparatus was working properly or not. Figure 1: Photoelectric Effect 2. After arranging all the equipment, I put the diagram in front of me and I started making neat and tight connections by following the diagram. The negative terminal of the battery was connected to cathode K of the photo cell C through a rheostat and galvanometer G. The anode A of the photocell C was connected to the positive terminal of the battery through a key. 3. After arranging the apparatus, I put the light lamp at some distance from the photocell. The distance was measured by using a scale. The lamp was positioned in such a way that it was facing cathode of the photocell. When I switched on the lamp, the light fell on cathode and it emitted electrons. Since cathode was negatively charged therefore, it repelled the electrons and emitted them towards anode, the positive terminal of the photocell. The movement of electrons from cathode to anode produced photoelectric current in the circuit. I would like to mention here, that the photocell which I had used had a concave cathode to give a converging beam of electrons to anode. 4. When I ensured that the apparatus was well arranged and photoelectric current was being produced, I changed the distance of the lamp from cathode of photocell and noted down the new distance. While changing the distance I checked the deflection in the Microammeter. I noted down the reading of deflection of Microammeter. The relation between intensity of illumination and distance is as follows: I = constant/d2 It means that intensity of light is inversely proportional to the square of distance. Since I was taking the readings of distance and galvanometer therefore, this formula could be used to determine the intensity of light. One thing which I considered while changing the distance was that whenever I changed the distance of the lamp from the cathode, I moved the lamp linearly, to keep the angle of incident rays same from the cathode. 5. I took few readings of distance of lamp from cathode of photocell and deflections in Microammeter. Since I did not change the angle at which light was falling on the cathode, therefore, I ensured that the relation between intensity of light and square of distance was linear. I = constant/d2 I = 1/d2 Since, constant = 1 (as there was no change in angle and relationship is linear) 6. After taking all readings I plotted a graph between 1/ d2 and theta, which is the deflection in galvanometer. The graph which I plotted was a straight line and it was showing the direct relationship between photoelectric current and incident light. Precautions and Sources of Error It was a very simple experiment however, in order to avoid the impact of other factors on the experiment, I took following precautions: i. I took distance readings by placing the lamp at larger distance and then I changed the lamp with regular steps. The reason was that the smaller values of distance might have reduced the accuracy of readings. ii. The same light source was used for all readings to keep the frequency constant. However, before conducting the experiment, I ensured that no other electric source was attached to the apparatus and the light of right frequency was selected. Furthermore, all other lights of the laboratory were switched off before performing the experiment. iii. There are two kinds of photocells available in the laboratory including those which have external voltage source and those which do not have external voltage source. I performed the experiment by using the one without external voltage source. iv. To make my readings précised I used a Microammeter and my readings of current were measured in Microampere. Although a sensitive galvanometer could be also used however, a galvanometer is typically used to check the effect of photoelectric effect only and it does not give precise measurements of current. v. In order to avoid the inconsistency in data the distance of lamp from cathode was changed linearly without changing the angle at which light falls on cathode. vi. The photocell was not exposed to stray light because it could have distorted the aim of keeping the same frequency of light. Dependent and Independent Variables Basically the photoelectrons which move to produce photoelectric current are dependent upon different factors including the nature of material (In my experiment, the nature of cathode on which the light was falling), frequency of incident radiation, intensity of incident radiation and potential difference between the electrons.3 In order to conduct this experiment, I only considered one factor i.e. the intensity of incident light. The frequency of light was kept constant by only using the single source of light, while taking all the readings of the experiment. The potential difference of cathode was set before the conduction of the experiment to keep it constant for all the readings. All readings were taken by performing the experiment on the same photocell, which ensured that the nature of the material used (cathode) was same for all the readings. The deflection of galvanometer is the dependent variable while the inverse of square of distance is the independent variable. All other factors affecting the photoelectric effect were kept constant. PRIMARY DATA COLLECTED The primary data which has been collected after conducting this experiment is summarized in the give table. Table 1: Data Collected From Experiment Serial # Distance of lamp from photo cell Deflection of Galvanometer d2 1/d2 'd' cm Microampere (I) cm2 cm-2 1 95 5 9025 0.000111 2 90 9 8100 0.000123 3 85 15 7225 0.000138 4 80 17 6400 0.000156 5 75 20 5625 0.000178 6 70 23 4900 0.000204 7 65 25 4225 0.000237 8 60 30 3600 0.000278 9 55 35 3025 0.000331 10 50 50 2500 0.0004 11 45 66 2025 0.000494 12 40 115 1600 0.000625 13 35 170 1225 0.000816 14 30 216 900 0.001111 15 25 236 625 0.0016 16 20 252 400 0.0025 17 15 290 225 0.004444 18 10 339 100 0.01 The second column of the above table shows the distance of lamp from photocell. This distance is the distance of lamp from the cathode of photocell. Basically when the distance is increased, light from the sources takes more time to strike on the cathode and the intensity of the light is decreased. It means that to change the intensity of light, I have changed the distance of light source from the cathode of photocell. The third column shows the deflections in galvanometer. Galvanometer shows the readings of current produced as a result of photoelectric effect. While conducting the experiment, the change in distance or intensity of light was also changing the deflections in galvanometer, thereby showing variations in photoelectric current. The readings of fourth column have been calculated by taking the square of distance of lamp from cathode given in the second column. And finally to check the relationship between current and inverse of square of distance (I = constant/d2), the readings in the last column were calculated. In order to check whether there is a relation between photoelectric current and inverse of square of distance or not, correlation of two variables was calculated. The reading of correlation not only gives an idea about the nature of relationship between the two variables but it also provides a fair idea about the strength of relationship. The calculated value of correlation between photoelectric current and inverse of square of distance is 0.798. Table 2: Correlation between Photoelectric Current and Inverse of Square of Distance Deflection of Galvanometer 1/d2 Microampere (I) cm-2 5 0.000111 9 0.000123 15 0.000138 17 0.000156 20 0.000178 23 0.000204 25 0.000237 30 0.000278 35 0.000331 50 0.000400 66 0.000494 115 0.000625 170 0.000816 216 0.001111 236 0.001600 252 0.002500 290 0.004444 339 0.010000 Correlation 0.798374 Uncertainties The uncertainty in this experiment has been collected by dividing the least count with calculated observation. The least count of meter ruler scale is 0.1 cm and suppose, if the first observation is 95, then calculated uncertainty is 0.1/95=0.0011. The following chart shows the uncertainty for each value. Serial # Distance of lamp from photo cell Least count Calculation Uncertainties 1 95 0.1 0.1/95 0.001052632 2 90 0.1 0.1/90 0.001111111 3 85 0.1 0.1/85 0.001176471 4 80 0.1 0.1/80 0.00125 5 75 0.1 0.1/75 0.001333333 6 70 0.1 0.1/70 0.001428571 7 65 0.1 0.1/65 0.001538462 8 60 0.1 0.1/60 0.001666667 9 55 0.1 0.1/55 0.001818182 10 50 0.1 0.1/50 0.002 11 45 0.1 0.1/40 0.002222222 12 40 0.1 0.1/35 0.0025 13 35 0.1 0.1/30 0.002857143 14 30 0.1 0.1/25 0.003333333 15 25 0.1 0.1/20 0.004 16 20 0.1 0.1/15 0.005 17 15 0.1 0.1/10 0.006666667 18 10 0.1 0.1/5 0.01 ANALYSIS AND EVALUATION The analysis of the primary data collected from the experiment is based on the correlation of variable and graphical description. Although both tools of analysis provide information about nature of relationship and strength however, their consolidated findings would made my results reliable. Correlation The correlation of variations in photoelectric effect and inverse of square of distance is about 0.79. Although this value is below that 1.0 however, it shows that there is a significant positive relationship between the two variables. In other words, it shows that there is a positive relationship between variations of photoelectric current and intensity of light. Though the correlation is not perfectly 1.0 however, it is very significant. Therefore, correlation analysis shows that increasing intensity of light has a positive effect on variations of photoelectric current. Graphical Explanation The theoretical explanation of variations of photoelectric current by changing the intensity of light gives the following graph (Graph 1). This graph shows that there is a linear positive relationship between current and inverse of square of distance. Graph 1: Theoretical Graph between Photoelectric Current and Inverse of Square of Distance The findings of my experiment when plotted on a graph gave the following graph. The graph shows a positive relationship between two variables of deflection in galvanometer and inverse of square of distance. The inverse of square of distance is the measure of intensity of light and it has been plotted on x-axis. On y-axis the readings of deflections of galvanometer have been showed which measure of photoelectric current. The inverse of square of distance is the independent variable while the deflection of Microammeter is the dependent variable. Graph 2: Actual Graph between Photoelectric Current and Inverse of Square of Distance The Graph 2 shows that there is a positive relationship between the deflections in galvanometer and inverse of square of distance. Apart from that, the graph also shows that it is a considerable linear relationship. The line drawn between the two variables is not completely linear which might have caused because of the errors in the experiment. It is agreed that the graph lin is not completely linear however, the trend line clearly shows a completely positive relationship between photoelectric current and inverse of distance. Therefore, graphical analysis shows that increasing intensity of light has a positive effect on variations of photoelectric current. On the basis of correlation analysis and graphical analysis, it is evident that variations of photoelectric current are caused by changing the intensity of light. Now, I would explain the reason because of which this phenomenon occurs. Basically photoelectric current is produced as a result of photoelectric effect when light strikes on the surface of matter. The beam of light knocks out electron from the surface of matter, which flow and produce photoelectric current. When the intensity of light is increased, it gets more photons or packets of energy. The light of high intensity when strikes the surface of matter knocks out more electrons thereby, increasing the flow of electrons. As a result of increasing flow of electrons more photoelectric current is produced. However, if the frequency of the light that is striking the surface of matter is not equal or greater than the threshold frequency or in other words, if a single photon is not energetic enough to knock down an electron from the surface of matter, then photoelectric current is not produced no matter how intense the light is. CONCLUSIONS From the analysis of findings of experiment, it is evident that all results are in agreement with previous studies. The method, which I have used to explain the effect of intensity of light on photoelectric current has highlighted a positive linear relationship with only slight deviations. I believe that these issues might have resolved by changing the distance more accurately and by taking the readings of Microammeter more precisely. However, very small readings of Microammeter prevented me from doing so. Based on the analysis and evaluation of my findings, it can be concluded that photoelectric effect is a very important process because of its various applications in our daily life. The photoelectric current, which is produced as a result of this phenomenon shows variations when intensity of light is changed. There is a linear positive relationship between intensity of light and variations in photoelectric current because when intensity of light increases, more photons knock out more electrons, thereby, increasing the photoelectric current. However, this relationship only exists when the frequency of light being used is greater than the threshold frequency. Sources of Error One limitation of our experiment is that whilst conducting the experiment, we could not control the external variables; therefore, our experimental results deviated from expected theoretical results. In order to check out the extent to which error occurs in this experiment, the percentage error has been collected. Calculation of Error             Serial # Distance of lamp from photo cell Deflection of Galvanometer Theoretical values Difference Percentage error   'd' cm Microampere (I)   Values percentages 1 95 5 5 0 0.000 2 90 9 9 0 0.000 3 85 15 13 2 0.154 4 80 17 17 0 0.000 5 75 20 21 -1 -0.048 6 70 23 25 -2 -0.080 7 65 25 29 -4 -0.138 8 60 30 33 -3 -0.091 9 55 35 37 -2 -0.054 10 50 50 41 9 0.220 11 45 66 45 21 0.467 12 40 115 49 66 1.347 13 35 170 53 117 2.208 14 30 216 57 159 2.789 15 25 236 61 175 2.869 16 20 252 65 187 2.877 17 15 290 69 221 3.203 18 10 339 73 266 3.644 The following graph III shows that if our actual values would have been equal to the theoretical values, then we might have found the given graph. One thing that is noticeable is that the values of error are very small in the beginning and with changing distance, the error is increasing. Graph 3: Expected Graph between Photoelectric Current and Inverse of Square of Distance In order to get better results and to make this experiment better, the apparatus needs to be very accurate. For measuring the distance accurately, a good length should be used with least error. Controlling the external conditions such as air friction and atmospheric conditions was not really possible for us, however, by performing this experiment, under completely controlled conditions, the percentage error can be reduced. However, this experiment has really helped us to understand the academic concept of intensity of light and variations in light in real life. BIBLIOGRAPHY Javier, Duarte. M. G. The Photoelectric Effect: Determination of Planck’s Constant. 25 September 2008. "Photoelectric Effect." City Collegiate. 16 October 2009 . Subhrajyoti, Maji. The General Science Journal. 15 October 2009 . Read More
