An antenna is guyed by three cables as shown. Knowing that the tension in cable AD is 270 lb, replace the force exerted at A by cable AD with an equivalent force-couple system at the center O of the base of the antenna.
4.5. Two crates, each of mass 350 kg, are placed…

Download full paper File format: .doc, available for editing

GRAB THE BEST PAPER96.6% of users find it useful

Read Text Preview

Subject: Miscellaneous
Type: Assignment
Level: High School
Pages: 7 (1750 words)
Downloads: 2
Author: shana61

Extract of sample "Homework(3) - Vor Mechanics / Statics"

Download file to see previous pages

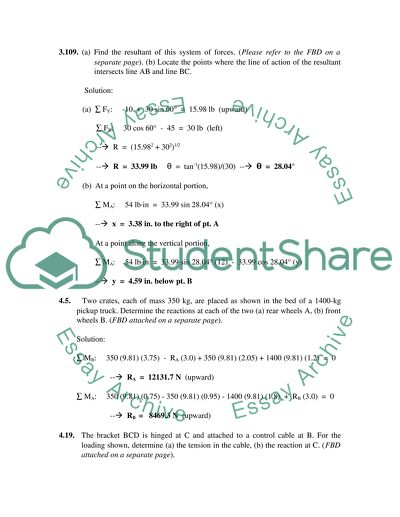

If a 60-lb force P is exerted on the spanner at D, find the reactions at A and B. (FBD attached separately) 4.75. Member ABC is supported by a pin and bracket at B and by an inextensible cord attached at A and C and passing over a frictionless pulley at D. The tension may be assumed to be the same in portions AD and CD of the cord. For the loading shown and neglecting the size of the pulley, determine the tension in the cord and the reaction at B. (FBD attached separately) 4.80. Using the method for sec. 4.7, solve for Prob. 4.28.

A lever AB is hinged at C and attached to a control cable at A. If the lever is subjected to a 500-N horizontal force at B, determine (a) the tension in the cable, (b) the reaction at C. (FBD attached separately) 4.122. The assembly shown is welded to collar A that fits on the vertical pin shown. The pin can exert couples about the x and z axes but does not prevent motion about or along the y-axis. For the loading shown, determine the tension in each cable and the reaction at A. (FBD attached
