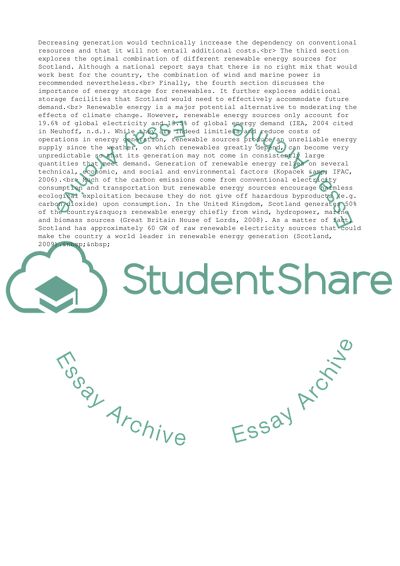

Energy Storage and Demand Management I. Executive Summary This report discusses renewable energy storage and management in Scotland. It consists offour major sections. The first section presents the impacts of generating renewable energy upon demand management, hypothesized under three scenarios each with different rates of capacity increases. Demand levels are met effectively under the three scenarios. The second section is concerned about the consequences of either increasing or decreasing renewable energy generation within the Scottish transmission line. Increasing renewables generation would not only modify how the grid network operates but would also entail more financial burden for Scottish producers than for other producers because the former are farther from the centers of demand. Decreasing generation would technically increase the dependency on conventional resources and that it will not entail additional costs. The third section explores the optimal combination of different renewable energy sources for Scotland. Although a national report says that there is not right mix that would work best for the country, the combination of wind and marine power is recommended nevertheless. Finally, the fourth section discusses the importance of energy storage for renewables. It further explores additional storage facilities that Scotland would need to effectively accommodate future demand. This report concludes that fully realizing the potential of Scotland will make the country one of the largest sources of renewable energy, thereby affecting demand in the global scale. II. Scenarios for Generating Renewable Energy: Impact on Demand Management A. Background Renewable energy is a major potential alternative to moderating the effects of climate change. However, renewable energy sources only account for 19.6% of global electricity and 13.5% of global energy demand (IEA, 2004 cited in Neuhoff, n.d.). While they are indeed limitless and reduce costs of operations in energy generation, renewable sources produce an unreliable energy supply since the weather, on which renewables greatly depend, can become very unpredictable so that its generation may not come in consistently large quantities that meets demand. Generation of renewable energy relies on several technical, economical, and social and environmental factors (Kopacek & IFAC, 2006). Much of the carbon emissions come from conventional electricity consumption and transportation but renewable energy sources encourages a harmless ecological exploitation because they do not give off hazardous byproducts (e.g. carbon dioxide) upon consumption. In the United Kingdom, Scotland generates 50% of country’s renewable energy chiefly from wind, hydropower, marine and biomass sources (Great Britain House of Lords, 2008). As a matter of fact, Scotland has approximately 60 GW of raw renewable electricity sources that could make the country a world leader in renewable energy generation (Scotland, 2009). The country can generate renewable energy five times more than it consumes (McDermott, 2010). But the challenge remains, however on the transmission of this energy potential in which regulatory, financial, logistical, and environmental factors should be taken into account especially in improving the grid network and the policy considerations (Scotland, 2009). The Scottish Government, in response to its commitment to reduce carbon emissions by at least 42% in 2020, aims to “flex generation [of electricity] to meet demand, and ...flex demand to meet generation” (Scotland, 2010a). Taken from a national report, the following scenarios present how RE generation affect demand management in Scotland. In all three scenarios, demand levels are satisfied. In the second and third scenarios, supply will exceed demand with transmission upgrades, constraints approaches , and reduction of demand in consideration. B. Scenario 1 The Scottish Government had recently increased its renewable target to 80% for 2020 due to the expansion in wind power through which renewables may be largely deployed for the next nine years without the need of modifying the current systemic frameworks (Scotland, 2010a). This imposed increase will affect Scotland’s capacity to generate within the same period through a generation portfolio. In this scenario, positive power flows will be contained between 2020 to 2030. Additional power generated may be contained in significant volumes through transmission upgrades between Scotland and England within the following time frames: 2015, 2020, and 2030. By 2020, 61% of the Scottish generation output is renewable and by 2030, it will rise to 76%. The report implies that this will allow the country to hit the target. The report further indicates that Scottish generators will be able to produce from 12 GW to 17 GW within a ten year period from 2010 and approximately 18 GW by 2030 due to the increased generating capacity (Scotland, 2010a). A centralised energy storage will be less necessary and location specific constraints will only have to be addressed locally. C. Scenario 2 In this scenario, the targets are based on practical perceptions on renewable growths from which offshore wind sector contributes largely. More exactly, 12 GW of wind, 700 MW of marine and 400 MW of biomass installed in 2020 will drive the rise of generation capacity. It will reach 70% and 83% by 2020 and 2030 respectively. Particularly, this is an increase from 12 GW to 21.5 GW by 2020 of installed capacity. Therefore by 2030, there will be an overflowing supply of renewables even if thermal generation will be constrained (Scotland, 2010a). The percentage contribution of renewable energy to the final energy demand rise climb from the 2008 figure, 27% to 120% in 2020 and 58% in 2030 (Scotland, 2010a). By 2015, satisfying 50% of renewable electricity demand will be reached (Scotland, 2010a). D. Scenario 3 With increased capacity from 12 GW to 25.5 GW to 29 GW by 2020 and 2030 respectively, the percentage of renewable capacity as 73% by 2020 and 88% by 2030. Installation of 16 GW of wind mainly from offshore wind, 1 GW of marine and 400 MW of biomass capacity will drive the increased in capacity by 2020. Like under the second scenario, generating renewable energy will prevail in the locality, producing more renewables than it needs; and that by 2015, renewables will meet 50 per cent of the demand for electricity (Scotland, 2010a). III. Consequences of Increasing and/or Reducing Renewable Generation within the Scottish Grid A. Increasing RE Generation Aside from wind power, hydropower, tidal, and wave power will gain wider importance. Scotland has an abundant amount of rainfall and 1.2 GW of wave and tidal energy being processed within 10 plant sites (Warren, 2002; Great Britain House of Lords, 2008, p. 119). Hydroelectricity will be particularly used in coping with the increasing intermittence in that a pumped storage hydroelectricity will have to be installed to manage peak demand periods (Great Britain House of Lords, 2008, p. 120). Therefore, increasing renewable generation could change the way the Grid network operates. Branches of the network will have to be more responsive to change in order to handle the additional generation (Great Britain House of Commons, 2008). Scotland’s transmission line has to be upgraded otherwise the renewable potential will substantially diminish to 33 TWh, according to a Scottish Executive study in 2001 (RSPB, WWF, & FOE, 2006). Additionally if intermittent renewables will be increased, then dependence on the fossil fuels as a source of electricity will decrease. It will reduce burning of fossil fuels. Usage of gas and oil will have to be reduced so that demand for electricity from the heat and transport sectors will increase (Scotland, 2009). Scotland has an unquestionable comparative advantage in terms of producing natural energy. Bringing in an increase of intermittent renewable generation into the Scottish Grid would mean that Scotland will have to connect to the additional areas of demand. Scotland has produces renewable electricity more than it needs, therefore, they will have to provide outside the locality. The increase would technically increase supplies. The Scottish Government invests on grid reinforcement for cross-border transmissions. In fact ScottishPower, an international energy transmission network, developed a £84 million grid reinforcement for a better cross-border massive renewable energy transmissions (New Energy Focus, 2008). It has increased Scotland’s export capacity from 2200MW to 2800MW two years after the reinforcement (New Energy Focus, 2008). There has been twice as much electricity generated by renewable sources from Scotland since 2000 (see Table 1) (Scotland, 2010b). This means that there has been a consistent increase of grid connections -- transmission upgrades as investments. However, grid connections are already a costly enterprise. With Great Britain’s charging system, generators from Scotland will pay “higher connection charges, chiefly as Transmission Network Use of System (TNUoS) charges, compared to generators elsewhere in Great Britain because of their distance from centres of demand” (Great Britain House of Lords EUC, 2008). In order to be able to transmit to the national grid network, Scottish producers would pay £21.59 per kilowatt (kW) (Jones, 2010). This amount is much higher than the charge imposed to producers in England because Scottish producers are farther away from areas of demand (Great Britain House of Lords, 2008b). TNUoS charging system was devised to stimulate generators to connect near areas of demand. However, renewable and conventional generators do not only pay for TNUoS charges but also for BSUoS (Balancing Services Use of System) charges for employing the National Grid as system operator (Great Britain House of Lords, 2008b). If renewable generation in Scotland will expand, BSUoS charges will also increase (Great Britain House of Lords, 2008b). With this as possibility, it will be a hurdle for the electricity market because BSUoS charges do not vary by location currently (DECC, 2010). The current charging scheme may put Scotland off from generating renewables and hamper investments, especially that Scotland is a very valuable generator (Great Britain House of Lords, 2008b). If generators will increase renewables production with the local grid, not only will they be paying higher charges, there is also bigger possibility for losses during transmission to and fro far distances (Great Britain House of Lords, 2008b). The Scottish government believes that a networking charging regime will produce economic results than a transmission charging system (EDEM, 2010). Generally, increasing renewable generation would involve technical, economical, political and ecological interventions. However, an external downside to increasing renewable generation within the Scottish transmission line, is the possibility that it would reduce healthy competition within the British zone. While renewable generation is entirely promising for the environment, increasing it would affect competition drastically (Macalister, 2008). B. Decreasing RE Generation Decreasing renewable generation may not affect demand since conventional substitutes are still readily available. In other words, there will be no significant changes on the demand levels for renewable energy from different sectors outside Scotland where it is potent. One important factor to consider is the fact that renewable energy is still highly unreliable so that increasing its production may not equate to demand satisfaction. Additionally, the country will have to depend on conventional resources to serve as back-up especially during peak demands. Therefore, decreasing renewable generation will only pronounce the importance of fossil fuels and other conventional energy resources for everyday consumption. Although if Scotland reduces its production of renewables, it may not inflict economical strains because conventional power plants will not have to be closed. IV. Optimal Fraction of Renewable Energy “Currently only bioenergy and hydropower make significant contributions to meeting energy demand, followed by geothermal energy and wind power” (Great Britain House of Lords, 2008a). Scotland may produce approximately 63 GW of electricity from its renewable energy potential -- from which 11.5 GW and 25 GW are from onshore and offshore wind respectively, 14 GW of both wave, 7.50 GW from tidal stream, and 1.63 GW hydropower, and biomass, geothermal, etc comprise the remaining proportion (see Table 2 for the corresponding capacities) (McDermott, 2010). The country’s current renewable energy capacity which is only 3 GW comes mostly from onshore wind (McDermott, 2010). For this reason, concentrating on wind and marine power generation is optimal. The optimal fraction of wind is to marine sources is 12:7. A. Onshore and Offshore Wind Energy Fifty-six of the Scotland’s 170 renewable plants are large wind farms, in fact some are the largest onshore wind farms in the whole of Europe (Alldritt & Hopwood, 2010). Onshore wind represents Scotland’s major resource potential (Scottish Executive, 2005). This explains why the country sources the largest volumes of wind energy to several parts of Europe. By 2016, Viking Energy, a joint venture between the Shetland community and Scottish and Southern Energy (SSE), proposes to install 150, 3.6 MW turbines (Alldritt & Hopwood, 2010). This would result in the production of 2 billion units of energy annually (Alldritt & Hopwood, 2010). Nevertheless, even without optimization, onshore wind alone will already suffice in reaching the 2020 renewable target which is 17 TWh and an additional 20 TWh energy cap as a result of switching to renewable from conventional generation (RSPB, WWF, & FOE, 2006). Onshore wind has been estimated to produce 45 TWh for electricity use (RSPB, WWF, & FOE, 2006). Although these figures still have to be proven in practice because there still a need to coping with the impacts of wind intermittency and for grid infrastructure upgrades (RSPB, WWF, & FOE, 2006). Aside from onshore wind however, offshore wind power in Scotland is also harnessed through two wind farms, Moray Firth and Firth of Forth (Carrell, 2009). These wind farms could generate 5 GW of electricity from 950 new wind turbines (Alldritt & Hopwood, 2010). B. Marine Energy (Tidal Stream and Wave Energy) Wave and tidal stream sources are also abundant sources readily available for exploitation. Scotland’s marine power can deliver 1.3 GW. However, marine energy is still a premature technology in Scotland, making it a less explored renewable source (AEA, 2010). Nevertheless, SEA, an agency authorized to conduct to study wave and tidal energy, concluded that the country’s marine renewable sources has the capacity to generate power between 1,000 MW and 2,600 MW, that is, taking into account the limits set within the study (AEA, 2010). It is worth-mentioning that Scotland develops the most advanced technologies that exploits its full potential for renewable energy production. C. Optimal Energy Mix Electricity generation will have to be de-carbonised through an optimal use of renewable sources and fossil fuels to capture and store carbon (Scotland, 2009). If wind and marine potential capacity is fully realized, Scotland will be able to generate power more than UK needs. Wind and marine power will be an optimal mix because they are the two most abundant and potent renewable sources in Scotland. It is only rational to make use of what is readily available. Scotland is less potent in producing solar and biofuel energy to provide for the heat and transport sectors which is why the country can globally affect the demand for renewable electricity usage instead. Electricity production and consumption yields the largest quantities of sulfur dioxide and carbon dioxide (Powerful Solutions, 1999). On another point, according to Scottish Renewables, a forum promoting renewable energy development and consumption, there is no optimal combination of different types of renewables in Scotland. It says that regardless of whether there is optimization, the 2020 target may still be achieved. Perhaps this is due to the fact that renewable resources are conserved; and since the country is endowed with a wide variety of resources, it will be able to sustain an effective electricity market. Renewable energy is widely used for electricity usage, although in both the heat and transport sectors, more development will be necessary. Electricity only comprise 20% of energy consumption whereas heating and transport accounts for the remaining percentage (Scottish Renewables, 2011). V. Additional Renewable Energy Storage Facilities Energy storage facilities enable producers to satisfy an increasing demand by providing adequate supply of energy stored from these facilities. Because the potential of Scotland can definitely influence the demand curve, generators will have to produce more but still with the utmost operating efficiency. Hence, generators need to install additional storage facilities in potent locations and where possible, near areas of demand. Storage for renewable energy is equally important as for conventional energy. The intermittency of renewable resources makes storage even more important especially during periods where demand is high. If Scotland decides to increase its production, it will require additional storage facilities installed in prospective locations. Scotland already has advanced energy storage technologies such as fluid storage, advanced battery systems, mechanical systems, electro-magnetic systems, hydrogen for energy storage. Additional wind and marine power will be contained in additional pumped hydro storage and compressed air storage systems. Western Isles is a promising location for producing renewables. Since, 1992, renewables development has already been conducted in the island. In fact, the place has been the “test bed for renewables and energy saving technologies” so that it can become the capital for renewable energy generation particularly wind and marine power, in Europe (Department for Sustainable Communities, n.d.). Onshore wind farms in North Lewis could perform 150 MW installed capacity (Halcrow Group, 2009). Meanwhile, wave and tidal resources are a recent ongoing development in Western Isles, and which can deliver an estimated total of 105 MW (Halcrow Group, 2009). Using pumped hydro storage and compressed air storage systems will store the unharnessed wind potential in Western Isles. Wind powered hydro storage is the oldest energy storage technology for energy production. This method is practical for wind energy storage because it pumps water to the upper reservoir during low demands such that it will provide during period of peak demands (Ernest, n.d.). Compressed air storage facilities could generate electricity when demand escalates by mixing natural gas and compressed air, stored primarily in underground caverns or abandoned mines, to combust as fuel (Ernest, n.d.). Tidal stream, on the other hand, will only need to be stored in a dam and released to generate electricity. VI. Conclusion Scotland is one of those few developed nations which render efforts to moderate the impacts of climate change. With the aid of the most advanced technologies, renewable energy can become very reliable. The country proves this premise. Not only will it be able to attain its national goal to reduce carbon emissions, it also provides other countries especially developed nations, which are major pollutants but only care less about tapping their own natural resources to reduce their carbon and other GHG emissions, the incentive that renewable energy is the only direct solution to the worsening environmental condition. Wind and marine resources are well-provided in Scotland. With an estimated 36 GW of aggregate wind power and approximately 21 GW of both wave and tidal stream capacity, the optimal fraction of renewable energy sources in Scotland, is 12:7 GW. Nevertheless, even without optimizing these resources for renewable generation, Scotland will still be able to affect demand for renewable energy in all sectors worldwide, that is if the country is faithful and bold enough to capitalize on them. References AEA, 2010. Energy storage and management study. [online] Scotland: AEA. Available at: http://www.scotland.gov.uk/Resource/Doc/328702/0106252.pdf [Accessed 3 Feb. 2011]. Alldritt, D. & Hopwood, D., 2010. Renewable energy in Scotland. [online] 23 Aug. Available at: http://www.renewableenergyfocus.com/view/11705/renewable-energy-in-scotland/ [Accessed 3 Feb. 2011]. Carrell, S., 2009. Europes largest onshore wind farm open and ready to expand Scotland moves step closer to target of generating 50% of its electricity from renewable sources by 2020. Guardian, [online]. Available at: http://www.guardian.co.uk/environment/2009/may/20/wind-farm-opens-scotland [Accessed 3 Feb. 2011]. Department for Sustainable Communities, n.d. Western Isles energy innovation zone. [online] Scotland: Department for Sustainable Communities. Available at: http://www.w-isles.gov.uk/energy/EIZvision.pdf [Accessed 4 Feb. 2011]. DECC, 2010. Summary: interventions & options. [online] Europe: DECC. Available at: http://www.decc.gov.uk/assets/decc/consultations/improving%20grid%20access/1_20100303155041_e_@@_20100303improvinggridaccessimpactassessmentfinal.pdf [Accessed 4 Feb. 2011]. EDEM, 2010. Ofgem opens full review of GB network charging regime. [online] 22 Sept. Available at: http://www.icis.com/heren/articles/2010/09/22/9395474/power/edem/ ofgem-opens-full-review-of-gb-network-charging-regime.html [Accessed 1 Feb. 2011]. Ernest, T., n.d. Wind energy storage. [online] Available at: http://www.epoverviews.com/oca/Wind%20Energy%20Storage.pdf [Accessed 4 Feb. 2011]. Great Britain Parliament House of Commons: Innovation, Universities, Science and Skills Committee, 2008. Renewable electricity, generation Technologies: oral and written evidence. UK:The Stationery Office. Great Britain Parliament House of Lords, 2008a. Select Committee on Economic Affairs. The economics of renewable energy: evidence. UK: The Stationery Office. Great Britain Parliament House of Lords European Union Committee, 2008b. The EU’s target for renewable energy. UK: The Stationery Office. Halcrow Group Ltd., 2009. Economic and community benefit study final report. [online] Available at: http://www.stornowaywind.com/wp-content/uploads/2010/09/Halcrow-Report.pdf [Accessed 3 Feb. 2011]. Jones, P., 2010. “National Grid threat to Scottish renewables.” The Sunday Times, [online] 8 Jan. Available at: http://www.timesonline.co.uk/tol/news/uk/scotland/article6980047.ece [Accessed 3 Feb. 2011]. Kopacek, P. & International Federation of Automatic Control, 2006. Improving stability in developing nations through automation 2006: a proceedings volume from the IFAC Conference on Supplemental Ways for Improving International Stability through Automation ISA 06, 15-17 June 2006, Prishtina, Kosovo. Great Britain: Elsevier. Macalister, T., 2008. “Ofgem inquiry into dominance of Scottish grid.” Guardian, [online] 9 April. Available at: http://www.guardian.co.uk/business/2008/apr/09/oil.scottishandsouthernenergy [Accessed 3 Feb. 2011]. McDermott, M., 2010. Scotland will get 100% of its electricity from renewable energy by 2025: First Minister. [online] 28 Aug. Available at: http://www.treehugger.com/files/2010/09/scotland-will-get-100-percent-electricity-from-renewable-energy-by-2025.php [Accessed 3 Feb. 2011]. Neuhoff, K., n.d. Large scale deployment of renewables for electricity generation. The Cambridge-MIT Institute, UK. Working Paper 59. [online] Available at: http://www.dspace.cam.ac.uk/bitstream/1810/131566/1/ep59.pdf [Accessed 2 Feb. 2011]. New Energy Finance, 2009. Solar power 50% cheaper by year end, says New Energy Finance. [online] Available at: http://bnef.com/PressReleases/view/74 [Accessed 4 Feb. 2011]. New Energy Focus, 2008. ScottishPower completes £84m grid reinforcement programme. [online] 22 July. Available at: http://www.newenergyfocus.com/do/ecco/view_item?listid=1&listcatid=87&listitemid=237 [Accessed 2 Feb. 2011]. Powerful Solutions, 1999. Benefits of renewable energy use. [online] Available at: http://www.ucsusa.org/clean_energy/technology_and_impacts/impacts/public-benefits-of-renewable.html [Accessed 3 Feb. 2011]. RSPB, WWF, & FOE, 2006. The power of Scotland: cutting carbon with Scotland’s renewable energy. A briefing from RSPB Scotland, WWF Scotland and FoE Scotland, February 2006. [online] Scotland: RSPB, WWF, & FOE. Available at: http://www.rspb.org.uk/Images/cuttingcarbon_tcm9-133223.pdf [Accessed 3 Feb. 2011]. Scotland, 2009. Climate change delivery plan: meeting Scotlands statutory climate change targets: electricity demand and supply. [online] Scotland. Available at: http://www.scotland.gov.uk/Publications/2009/06/18103720/4 [Accessed 2 Feb. 2011]. Scotland, 2010. High level summary of statistics trend. [online] Scotland. Available at: http://www.scotland.gov.uk/Topics/Statistics/Browse/Business/TrenRenEnergy [Accessed 3 Feb. 2011]. Scotland, 2010a. Energy storage and management study. [online] Scotland. Available at: http://www.scotland.gov.uk/Publications/2010/10/28091356/5 [Accessed 2 Feb. 2011]. Scotland, 2010b. Target for renewable energy now 80 per cent. [online] Scotland. Available at: http://www.scotland.gov.uk/News/Releases/2010/09/23134359 [Accessed 2 Feb. 2011]. Scottish Executive, 2005. Scotland’s renewable energy potential: realising the energy target. [online] Scotland: Scottish Executive. Available at: http://www.scotland.gov.uk/Resource/Doc/54357/0013233.pdf [Accessed 3 Feb. 2011]. Scottish Renewables, 2011. Frequently asked questions. [online] Scotland: Scottish Renewables. Available at: http://www.scottishrenewables.com/Default.aspx?DocumentID=a6064c40-26ff-4ef8-899d-815982fcbe00 [Accessed 3 Feb. 2011]. Warren, C., 2002. Managing Scotlands environment. Scotland: Edinburgh University Press. Appendix Table 1 Renewable Electricity Generated Since 2000 Table 2 Overview of Scotland’s Resource Potential Technology Capacity (GW) Energy (TWh) Offshore wind 25.00 82 Onshore wind 11.50 45 Wave 14.00 45.7 Tidal stream 7.50 33.5 Small hydro 0.30 1 Read More
