Spatial Domain Filtering: Edge Detection/ Enhancement Insert Insert A-Original images A mixture of Edge Detectors is accessible for depicting the edges in computerized images. On the other hand, every detector has its own particular preferences and detriments. The essential idea behind side identification is to find in an image where they change quickly. Taking into account this thought, either an edge detector might be centered on the method of placing the spots where the first subordinate of the power is more prominent than a defined edge or it might be focused around the model to identify places where the second subsidiary of the force has a zero intersection. B-filtered images with truncations From the figures above we can see that, there are three sorts of images (circle, bmp), (yallingup, jpg) and (x-ray, jpg). All these images were truncated by utilizing Prewitt filter (Prewitt _h and Prewitt _v). The Prewitt_H filter discovered the even lines and level bearings on the images in the gray level to focus the flat edges. In these images, the foundations were black and the sides, which seemed white in this situation. In the Prewitt_H filter the most harmful are indicated black and the greatest (active) qualities are white, in this circumstance zero is black, for that the black edges (negative values) or lines are not demonstrated on account of the dark organization and they have the same force. The Prewitt _v filter located the vertical lines and vertical course on the image in the ash level to focus the vertical edges. The edges and lines were white in these pictures and the foundations were black. The extreme positive qualities were white in these images and the negative qualities seemed black and the zero quality is black, subsequently the negative qualities did not show up in light of because of same power of the body. C-Filtered images with Prewitt, Sobel and Roberts filters: The Prewitt_H Filter is focuses on the lines or edges that have level heading. The circular image foundation inside the loop changed to grey shade from white. The even edges in the ring image were upgraded, and the edges located. In the finished image, the top edges were the most reduced (negative) qualities and it implies that it is black, the base edges were the greatest (active) qualities, they are white, and the zero conditions are light black. The filter reaction is focused in the level model territories. The edges sharpness is expanded in the loop and the round indented inside the image, and there was some commotion. The same thing was witnessed in two images as shown in Figures (2c and 3c), the top edges were the negative qualities (dark) and the base edges were the positive qualities (white) and zero qualities, which remained to be grey. Both two images have light black foundations. The Prewitt_V filter is focusing on the lines or edges that have vertical bearing. From the Figures (1c, 2c and 3c) can be seen that the three images have been filtered by utilizing Prewitt_V. The vertical lines and edges have been enhanced in these images. In the Figure (1c) the circular image, the right side is darker while the left side is lighter. The Prewitt_V Filter has expanded the execution of the loop inside of the square because of the increment of the sharpness and the development on the crest of the square. The positive qualities are lighter; the negative qualities are darker, and the zero classes are light black. The image foundation is light black. The same has been struck by the other two images (2c and 3c) and the foundations are the same (grey). {Sobel filter} The Sobel filter comprises of two bits, which undergo vertical changes in the image, thusly accentuated areas of high spatial recurrence that relate to edges. On the off chance that both are connected to an image, consequences of the actions can be used to figure the size of the edges in the image. The above images in Figures (4c, 5c and 6c) were made by applying Sobel _H and V, the results were like those from Prewitt filter. On the other hand, Sobel filter can give more noteworthy weight to the focal pixels when performing averages, and the commotion is decreased in Sobel_H contrasting with the Prewitt _H. As we know, impacts of commotion on edge discovery give false edges and mistakes in the side position. {Roberts filter} The Roberts filter has little parts, and they are subordinates as for the two slanting headings. Roberts filter is exceptionally delicate to clamor; along these lines near commotion, it cannot recognize the edges. The Roberts filter sets were connected on a gathering of images seen in the Figures (7c, 8c and 9c); the results portrayed that a few images were brighter while others were darker. The edges were more honed. -All these filters distinguish where there is a slope in pixel values and the angle, it can be found in distinctive heading. -Maximum positive qualities are (white), and negative qualities are black, and the zero classes are grey. -All these filters are anisotropic filters.

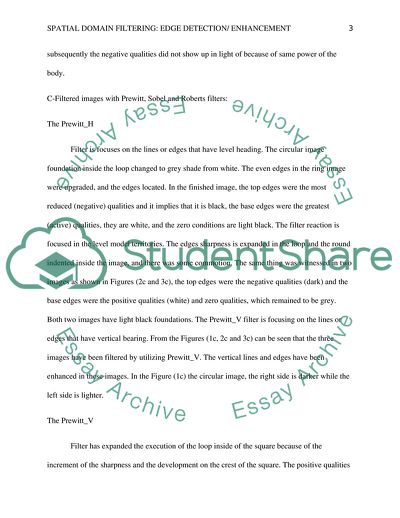

 -The angle is a vector, which has specific size and course. -The inclination greatness gives the measure of the contrast between pixels in the area, the quality of the edge. - The angle introduction gives the course of the best change, which probably is the heading over the edge (the edge normal) Exercise 2: These images above of (circle, bmp), (yallingup, jpg) and (Noise, jpg) were truncated by utilizing Prewitt filter (Prewitt _H and Prewitt _v). In these images, the foundations were black and the sides, which seemed white in this situation. The filtered images with Prewitt_H filter are demonstrated, black shade is negative and white color is certain qualities and zero quality is black this circumstance, so the black edges or lines are not indicated on the grounds that the foundation is black ,then again, there were some clamor . Conversely, the Prewitt _V is the same of Prewitt _H, accordingly the negative qualities were not showed up because they have the same force of the foundation. The Prewitt_H filter recognized the flat lines and level bearings on the images in the light black level to focus the even edges. -The Prewitt _V filter caught the vertical lines and vertical heading on the image in the grey level to focus the vertical edges Exercise 3:
Q: What will happen if Prewitt_H filter is placed over the vertical edge? In the event that Prewitt_H filter is put over a vertical edge the result is that, Prewitt_H filter will not discover the vertical edge and the reason is that it identifies the even edge with level bearing. D-Laplacian filter The Laplacian can be identified to have a 2-D isotropic, which is a measure of the second spatial subordinates of an image. The Laplacian of an image highlights areas of fast power change and is in the manner that frequently utilized for edge recognition. On the other hand, it is exceptionally touchy to clamor. It is continuously connected in the wake of smoothing an image by utilizing a Gaussian-smoothing filter, the purpose behind that is to lessen the sensitivity of Laplacian to commotion. The above images in Figures (1d and 2d) created in the wake of applying Laplacian filter to the parts (bmp) and load model. The Laplacian filter improves these images; then again, the clamor is expanded mainly in light of the fact that the Laplacian filter is amplifying commotion, which has been enhanced uniquely in the boisterous image. The bits image with Laplacian filter; the round image has a lighter line, which keeps the loop keener, and the amplifying of the commotion will not influence the parts filtered image greatly. The image subtle elements in the uproarious image are lost. Both images have grey backgrounds. The differences why edges show up like that in the Laplacian filter in light are that the image has a consistent force for instance when the power inclination is zero and when the power is transformed, its reaction is in two ways and positive qualities placed on the default side. It is so while negative values spotted in the splendid side, and this is against alternate filters like Prewitt, Sobel and Roberts filters that give the positive qualities white and the negative qualities black. Laplacian filter can amplify commotion in the image, and the others filters had decreased the clamor in the image, for example, Sobel filter. E-Unsharp Masking The Unsharp filter is a necessary honing administrator and it improves edges and other high recurrence segments in an image through a method which subtracts an Unsharp, or smoothed, side of an image from the first image and it relies upon a convolution piece to perform spatial filtering. The Unsharp Mask was connected to three separate sorts of images (x-ray, bits and the adjusted rose) with distinctive compass values (5, 50 and 110). The results were smoothed and Unsharp Masked images with diverse appearances. The smoothed images with compass esteem =five; these images were smeared, and the nature of images diminished contrasting with the first images. By expanding the compass worth to (50,110). The smearing the packing amidst the image within the center points of interest got to be imperceptible because of the high compass qualities, while the edges on these images more keen, much subtle elements can be seen over the edges. At the point when Unsharp Mask is connected on the smoothed images with diverse compass values (5, 50 and 110) the results were Unsharp Masked images. The images with compass esteem (5) have been identified and upgraded the images edges in the three models, and the foundations have to be light black; the edges have been much more honed. With images, compass values (50) the mask secured the outskirts of the images, and the core points of interest in these pictures were clearer. They had more differences than smoothed images with same compass values, which were smudged. This is inverse capacity between the two filters and the Unsharp Masked images with compass values (110) which were much better and had much differentiation for the image fringes and edges. Moreover, they have more blackness the inside subtle elements were the best. Read More
