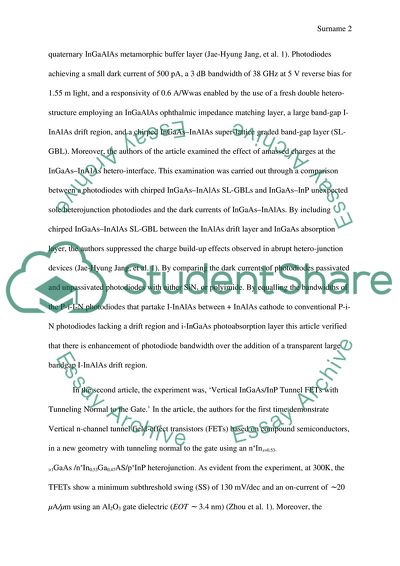

Gallium Arsenide (GaAs) is a compound of the elements arsenic and gallium. GaAs is a compound used in the manufacture of different devices such as frequency integrated circuits, infrared light-emitting diodes, and microwaves. With this in mind, this paper analyses four articles that carry out different experiments on GaAs. The paper will discuss the main objective in each article and the results of each experiment. In the first article, the experiment was ‘Metamorphic Graded Bandgap InGaAs–InGaAlAs–InAlAs Double Heterojunction P-i-I-N Photodiodes.’ The authors of the article are Jae-Hyung Jang, William E. Hoke, Gabriel Cueva, Patrick Fay, P. J. Lemonias, and Ilesanmi Adesida. The experiment involved fabrication of high-speed metamorphic double hetero-junction photodiodes on GaAs substrates for the purpose of long-wave-length fibre optical communications. According to Jae-Hyung Jang, et al, high speed in InGaAs photodiodes are very important components in extensive bandwidth optical fibre communication. Moreover, these photodiodes have been fabricated on InP subtracts as a result of the web matching of In0.33 Ga0.47 As to Inp. Jae-Hyung Jang, et al denote that Inp substrates have numerous practical shortcomings as compared to GaAs, that have encouraged the development of metamorphic device structure conducted on GaAs substrates. As per the authors of the article, the growth of excellent InGaAs–InGaAlAs–InAlAs hetero-structures on GaAs substrates was made possible by the superiority linearly graded quaternary InGaAlAs metamorphic buffer layer (Jae-Hyung Jang, et al. 1). Photodiodes achieving a small dark current of 500 pA, a 3 dB bandwidth of 38 GHz at 5 V reverse bias for 1.55 m light, and a responsivity of 0.6 A/Wwas enabled by the use of a fresh double hetero-structure employing an InGaAlAs ophthalmic impedance matching layer, a large band-gap I-InAlAs drift region, and a chirped InGaAs–InAlAs super-lattice graded band-gap layer (SL-GBL). Moreover, the authors of the article examined the effect of amassed charges at the InGaAs–InAlAs hetero-interface. This examination was carried out through a comparison between a photodiodes with chirped InGaAs–InAlAs SL-GBLs and InGaAs–InP unexpected sole heterojunction photodiodes and the dark currents of InGaAs–InAlAs. By including chirped InGaAs–InAlAs SL-GBL between the InAlAs drift layer and InGaAs absorption layer, the authors suppressed the charge build-up effects observed in abrupt hetero-junction devices (Jae-Hyung Jang, et al. 1). By comparing the dark currents of photodiodes passivated and unpassivated photodiodes with either SiNx or polyimide. By equalling the bandwidths of the P-i-I-N photodiodes that partake I-InAlAs between + InAlAs cathode to conventional P-i-N photodiodes lacking a drift region and i-InGaAs photoabsorption layer this article verified that there is enhancement of photodiode bandwidth over the addition of a transparent large bandgap I-InAlAs drift region. In the second article, the experiment was, ‘Vertical InGaAs/InP Tunnel FETs with Tunneling Normal to the Gate.’ In the article, the authors for the first time demonstrate Vertical n-channel tunnel field-effect transistors (FETs) based on compound semiconductors, in a new geometry with tunneling normal to the gate using an n+Inx=0.53->1GaAs /n+In0.53Ga0.47AS/p+InP heterojunction. As evident from the experiment, at 300K, the TFETs show a minimum subthreshold swing (SS) of 130 mV/dec and an on-current of ∼20 μA/μm using an Al2O3 gate dielectric (EOT ∼ 3.4 nm) (Zhou et al. 1). Moreover, the postdeposition annealing of the gate dielectric progresses SS, and devices passivation using any atomic layer deposition can efficiently avert dilapidation of any drain current overtime. According to the authors of the article, the clear negative differential resistance that is observed in the trend toward negative differential resistance and in the tunnel junction in the TFETs affirms that the conveyance mechanism in these FETS is inter-band tunnelling (Zhou et al. 1). The tunnel field-impact transistor (TFET) is viewed as the most encouraging electrical switch for ultra low-control gadgets, in light of the fact that it ought to empower sub-kBT/q exchanging and low-voltage operation. All in all, TFETs are in light of a gated p-i-n structure and can advantage from the tremendous mechanical advancement effectively accomplished for MOSFET gadgets in view of n-i-n or p-i-p structures for n- or p-sort gadgets. Subsequently, Si-based TFET advancements are the most develop and most scaled, and straightforward circuits have been exhibited taking into account strained Si nanowires (NWs) [3]. In spite of the fact that the steepest subthreshold swings (SS) have been acquired in Si it likely will be hard to accomplish adequately high on-streams in immaculate Si gadgets as a result of the expansive bandgap (EG) of Si. Therefore, sponsors, for example, heterostructures are expected to bring down the powerful tunnel boundary and empower high on-streams. Zhou et al. accept this new benchmarking to be a reasonable correlation. In a comparative manner, one may decide to plot the qualities acquired more than three many years of present or measured to the greatest estimation of ID. Zhou et al asserts that it is vital to assess gadgets on the same premise, i.e., picking a proper number of many years of current. Also, diverse advancements give a shifting level of potential for further scaling and gadget streamlining, which is not considered here. Information focuses are assessed from distributed representation, in view of our earnest attempts, along these lines this can give a wellspring of variability. Likewise, values may digress from referred to information if the biasing conditions utilized were not the same, for instance diverse VDS or VGS. All information focuses are measured at room temperature, DC-one-sided and taken from the "best gadget." In the third article, the experiment was, ‘InGaAs/InP Tunnel FETs with a Subthreshold Swing of 93 mV/dec and ION/IOFF Ratio Near 106.’ As per the authors of the article, at 300K, based on the n+Inx=0.53->1GaAs/p+InP heterojunction, the vertical n-channel tunnel field effect transistors (TFETs) by way of tunneling normal to the gate exhibit instantaneously a high ION/IOFF ratio of 6 × 105, an on-current of 20 μA/μm at VDS = 0.5 V and a lowest sub threshold swing (SS) of 93 mV/dec, and a gate swing of 1.75 V. As per Zhou, Guangle, et al, the important improvement in the device performance is attributed to the taking on of a thin corresponding oxide thickness of approximately ∼1.3 nm (1). This is for value-added electrostatics and the use of plasma heightened chemical vapour deposition to preserve the reliability of the thin unprotected semiconductor layers. A GAA InAs/InGaAs/InP heterojunction TFET has been composed and enhanced regarding Ga portion and its exhibitions were researched by reenactment meets expectations. As per Zhou, Guangle, et al at the point when x for direct In 1-x Ga x As was chosen to be 0.47 as an ideal quality, I on = 368 μA/μm, S = 32.4 mV/dec, and I on/ I off proportion = 2.41×10 8 were acquired. At the same Ga division, n-sort slight layer with an ideal thickness of 3 nm was plotted for upgrades in the RF exhibitions and also DC qualities (I on of 1.33 mA/μm and S of 21 mV/dec). Both f T and f max in the THz-administration were followed from the streamlined TFET gadget. It underpins that ideally planned InAs/InGaAs/InP heterojunction TFET has a solid potential for elite DC and RF application. According to Zhou, Guangle, et al As the channel length (Lch) of traditional MOSFET scales down constantly, different issues, for example, shortchannel impacts (SCEs) and high standby-power scattering have been seen. As of late, burrowing field-impact transistor (TFET) taking into account band-to-band (BTB) burrowing component has been inquired about as one of answers for ultra-little MOSFETs pointing low standby-power applications. Inferable from its justifies including low off-current (Ioff) and little subthreshold swing (S), TFETs can be utilized as a part of low-power and rapid applications. Then again, commercializing the silicon-based TFETs has not been effective because of their low on-current (Ion) attributes. To improve I on, different sorts of compound semiconductors, structures, and entryway separator materials have been received to acknowledge progressed TFETs. Particularly as utilizing source material of the high versatility and low vitality band crevice contrasted and Si, III-V compound semiconductors has been pulled in, for example, InAs and InGaAs for TFETs In the last article, the experiment was ‘Characterization and Impact of Traps in Lattice-Matched and Strain-Compensated Inl-xGaxAs/GaAsl-ySby Multiple Quantum Well Photodiodes.’ According to Chen, Wenjie et al, InP-based multiple quantum well photodiodes in the GaAsSb/InGaAs material system are auspicious for mid-infrared detection (1). This is possible by including strain in the devices. The detection wavelength however, has been extended to 3μm. In their work, Chen, Wenjie, et al carry an evaluation of Ino.34Gao.66As/GaAso.25Sbo.75 (strain-compensated) and Ino.53Gao.47As/GaAso.5Sbo.5 (lattice-matched) MQW photodiodes. The evaluation was carried using a deep level transient spectroscopy and a low-frequency noise spectroscopy so as to identify and extract the properties of their defect levels and their noise performance and their impact on dark current. Chen, Wenjie, et al, performed a trap characterization of the strain-compensated and lattice-matched MQW photodiodes using LFNS. According to Chen, Wenjie et al the low-frequency noise spectra for the two types of photodiodes are measured as a function of temperature and bias. Notably, Lorentzian features covered on a 1/f background manifest generation-recombination centres. Through the process of scanning the temperature from a range of 100 to 300 K, Chen, Wenjie, et al extracted the trap lifetimes from the Lorentzian peaks which are measured in the spectra. From this scanning, three traps were recognized for both the strain-compensated and the lattice matched photodiodes. As per Chen, Wenjie, et al, for the lattice-matched detectors the traps that had an activation energies of 0.43 eV, 0.34 eV, and 0.14 eV and a conforming capture of cross sections of l.13xl0-14, 2.12x10-14, and 4.33x10-17, correspondingly were obtained. However, for the strain-compensated devices, approximately same activations energies of 0.43 eV, 0.33 eV, and 0.12 eV were obtained. As per Chen, Wenjie, et al, the capture section were different where they had a corresponding values of 3.75x10-15 cm2, 2.83x10-15 cm2, and 2.14x10-18 cm2. According to As per Chen, Wenjie, et al, the similarity in these two structures proposes that strain does not play a major role in controlling the structure of traps. However, it does play a strong role in their cross-section. To determine the spatial area of these watched traps, DLTS was utilized. Common watched capacitance homeless people for a grid coordinated indicator are demonstrated for the electron trap at 0.13 eV with catch cross segment of 2.07xlO- 18 cm2. From the predisposition reliance of the DLTS transients, the spatial conveyance was extricate and comparative results were found for the straincompensated structure. The evident trap thickness crests at roughly 1.26/ -lm over the n-InP/undoped InP interface, in the 25 nm un doped InGaAs move layer at the anode. Work Cited Chen, Wenjie, et al. "Characterization and impact of traps in lattice-matched and strain compensated In 1− x Ga x As/GaAs 1− y Sb y multiple quantum well photodiodes." Device Research Conference (DRC), 2012 70th Annual. IEEE, 2012. Jae-Hyung Jang, et al. Metamorphic Graded Bandgap Ingaas-Ingaalas-Inalas Double Heterojunction P-I-I-N Photodiodes. J. Lightwave Technol. 20.3 (2002): 507-514. Web. Zhou, Guangle et al. Vertical Ingaas/Inp Tunnel Fets With Tunneling Normal To The Gate. IEEE Electron Device Lett. 32.11 (2011): 1516-1518. Web. Zhou, Guangle, et al. "InGaAs/InP Tunnel FETs With a Subthreshold Swing of 93 mV/dec and Ratio Near." Electron Device Letters, IEEE 33.6 (2012): 782-784. Read More
