However, such programs should be used effectively on the basis of a profound knowledge of shell theories and shell mechanics as well as on the basis of an understanding of the fundamental concept of the analysis method. When analyzing more complex problems, an effective approach for inhibiting errors from occurring is to use analytical techniques so as to test the Finite Element program over simpler examples.

Despite numerous techniques being developed to overcome the convergence problems, however, the sequentially linear analytical (SLA) technique has an edge over the others when modeling cracks or damage to full-scale structures since the SLA technique successfully matches the potential of total strain fixed crack models.

Shell Elements: Implementation in Sequentially Linear Analysis
The potential of sequentially linear analysis is stretched to 3-D structures by using the shell elements. Although the analysis with complete three-dimensional solid elements can be done, however, the shell elements offer an efficient way to model numerous conventional structures. The generalized method for the solution is similar to that in the 2-D structures.

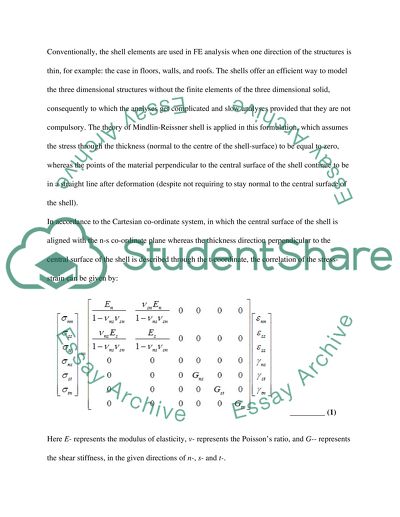

Conventionally, the shell elements are used in FE analysis when one direction of the structures is thin, for example, in the case of floors, walls, and roofs. The shells offer an efficient way to model the three-dimensional structures without the finite elements of the three-dimensional solid, consequently to which the analyses get complicated and slow analyses provided that they are not compulsory. The theory of the Mindlin-Reissner shell is applied in this formulation, which assumes the stress through the thickness (normal to the center of the shell-surface) to be equal to zero, whereas the points of the material perpendicular to the central surface of the shell continue to be in a straight line after deformation (despite not requiring to stay normal to the central surface of the shell).

In accordance with the Cartesian coordinate system, in which the central surface of the shell is aligned with the n-s co-ordinate plane whereas the thickness direction perpendicular to the central surface of the shell is described through the t-coordinate, the correlation of the stress-strain can be given by:
_________ (1)
Here E- represents the modulus of elasticity, v- represents the Poisson’s ratio, and G-- represents the shear stiffness, in the given directions of n-, s-, and t-.
In the beginning, prior to the occurrence of any damage, the material is considered to be isotropic causes:

Here the subscript o represents the initial stage at which the material holds the undamaged properties. By, integrating the above-mentioned two equations, we get the conventional stiffness matrix of the shell related to the isotropic materials as given below:

In the model, the nonlinear behavior is modeled by applying the damage increment at the critical point of integration. If the cracking occurs at any particular point of integration then the direction of the crack is fixed, and the normal elasticity, En, of the crack, is decreased. The stiffness matrix given above in equation (1) is applied at this point instead of the isotropic stiffness matrix that is no longer applicable here. In the ns plane, the Poisson’s ratios decrease at the same rate as that of the relative values of elastic modulus.
Nevertheless, in the other directions, Poisson’s ratios do not change. Moreover, the shear modulus that has a substantial impact on the propagation of the crack is anticipated to decrease in accordance with the following equation:

In the above equation, Emin denotes min(En, Es). These hypotheses mend the crack plane to be normal to the plane of the shell element. Since this formulation was deployed by regulating the stiffness matrix in every linear elastic analysis, it is not based on the features of the shell element. Consequently, the conventional series of shell elements having various nodes and points of integration are available.

Importantly, the formulation of the shell element formulation is the same as that of the elements of the layered membrane distributed over the shell’s thickness, introduced by a two-dimensional mesh having extra points of integration in the direction of the shell thickness. The number of the points of integration over the shell’s thickness is closely associated with the number of assessments needed for the establishment or the propagation of cracking across the complete shell, and hence should be confined wherever feasible. More points of integration are required in case of out-of-plane bending, however, points of integration can be decreased in number in case of in-plane loading. The subsequent framework can be used for modeling the three-dimensional failure of numerous conventional structures. Read More
